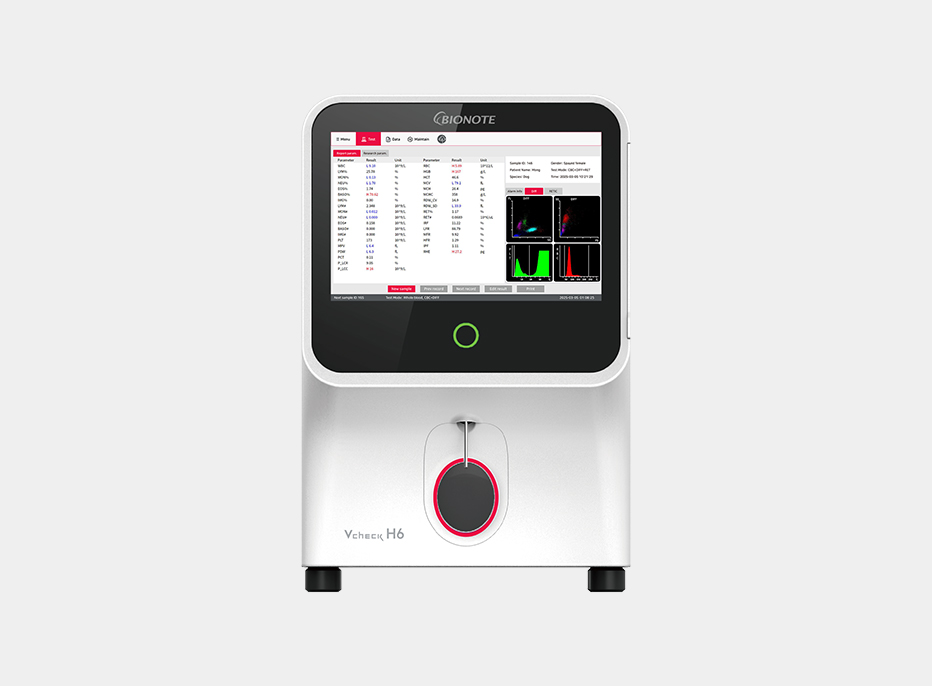

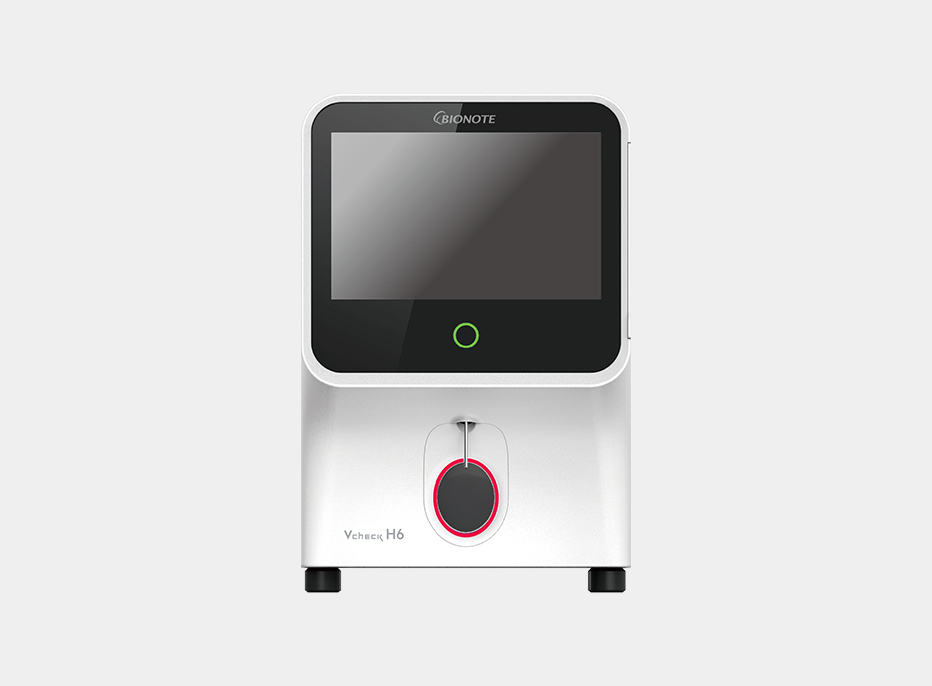

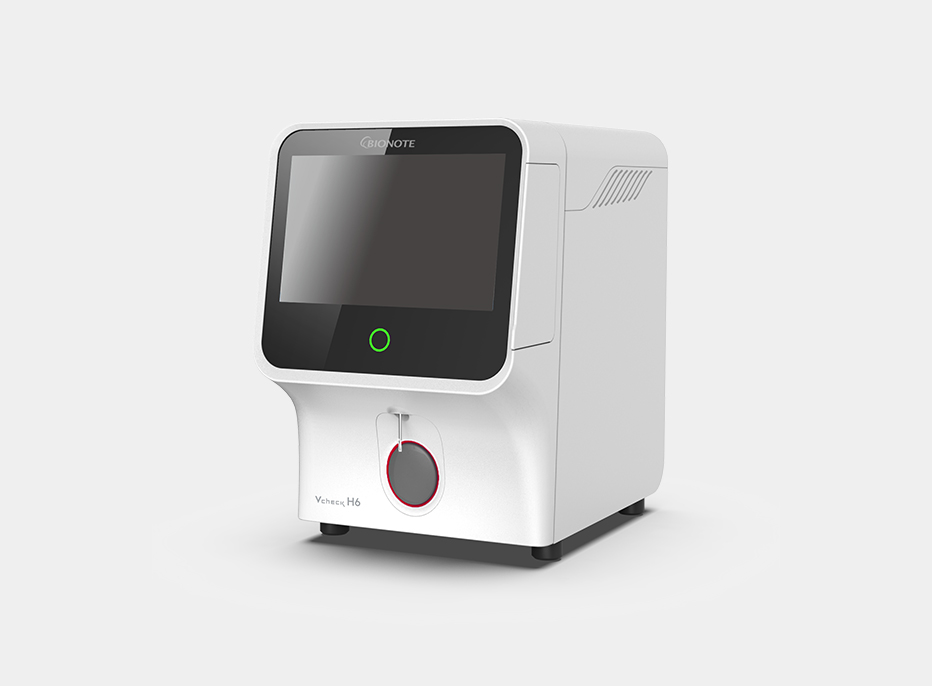

Vcheck H6
The Vcheck H6 offers rapid, high-precision 6-Diff and reticulocyte analysis, equipping veterinarians with accurate, dependable, and comprehensive hematology insights.
Specification
- Test method: Fluorescence Laer Flow Cytometry, Sheath Flow Impedance, Colorimetry
- Size: 320 x 471 x 474 mm
- Weight: 31 Kg
- Sample Type: Whole Blood
- Sample Volume:
CBC+DIFF Mode: ≤ 28 µL
CBC+DIFF+RET Mode: ≤ 34 µL
- Throughput:
CBC+DIFF Mode: Up to 60 samples/hour
CBC+DIFF+RET Mode: Up to 40 samples/hour
- Analysis Time:
CBC+DIFF Mode: 1 min
CBC+DIFF+RET Mode: 1 min 30 sec
-Reagents
1. Vcheck H H6 DS Diluent (9L)
2. Vcheck H H6 LD Lyse (200mL)
3. Vcheck H H6 LH Lyse (100mL)
4. Vcheck H H6 FD Fluorescent Dye (4mL)
5. Vcheck H H6 DR Diluent (200mL)
6. Vcheck H H6 FR Fluorescent Dye (3.5mL)
*Test Volume: 100 Tests / Bottle
*Storage: 2 - 30 °C (35.6 - 86°F)
- Data Storage: Up to 80,000 results
- Display: 12-inch Touch Screen
- Connectivity: LAN, HL7 Protocol Support, LIS/HIS Interface
- External Devices: USB Compatible Printer (A4, A5)
- Power Requirement: AC 100-240V, 50/60Hz, 300VA (Recommended: AC 220V)
- Operating Environment:
Temperature: 15-35°C
Humidity: 30-85%
- Size: 320 x 471 x 474 mm
- Weight: 31 Kg
- Sample Type: Whole Blood
- Sample Volume:
CBC+DIFF Mode: ≤ 28 µL
CBC+DIFF+RET Mode: ≤ 34 µL
- Throughput:
CBC+DIFF Mode: Up to 60 samples/hour
CBC+DIFF+RET Mode: Up to 40 samples/hour
- Analysis Time:
CBC+DIFF Mode: 1 min
CBC+DIFF+RET Mode: 1 min 30 sec
-Reagents
1. Vcheck H H6 DS Diluent (9L)
2. Vcheck H H6 LD Lyse (200mL)
3. Vcheck H H6 LH Lyse (100mL)
4. Vcheck H H6 FD Fluorescent Dye (4mL)
5. Vcheck H H6 DR Diluent (200mL)
6. Vcheck H H6 FR Fluorescent Dye (3.5mL)
*Test Volume: 100 Tests / Bottle
*Storage: 2 - 30 °C (35.6 - 86°F)
- Data Storage: Up to 80,000 results
- Display: 12-inch Touch Screen
- Connectivity: LAN, HL7 Protocol Support, LIS/HIS Interface
- External Devices: USB Compatible Printer (A4, A5)
- Power Requirement: AC 100-240V, 50/60Hz, 300VA (Recommended: AC 220V)
- Operating Environment:
Temperature: 15-35°C
Humidity: 30-85%
Related Products
-Order Information
-
Product No.
VC7806EAENC_250V VC7806EAEUS_125V VC7806EAJPN_125V VC7806EAKOR_250V
-
Product Name
Vcheck H6
-
Storage Temperature
Storage: 15–35 ℃ Operation: -10–55 ℃
-
Package Unit
