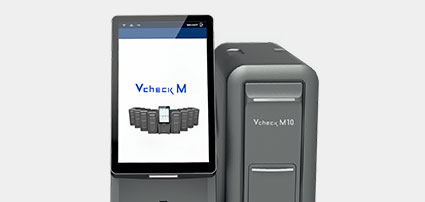

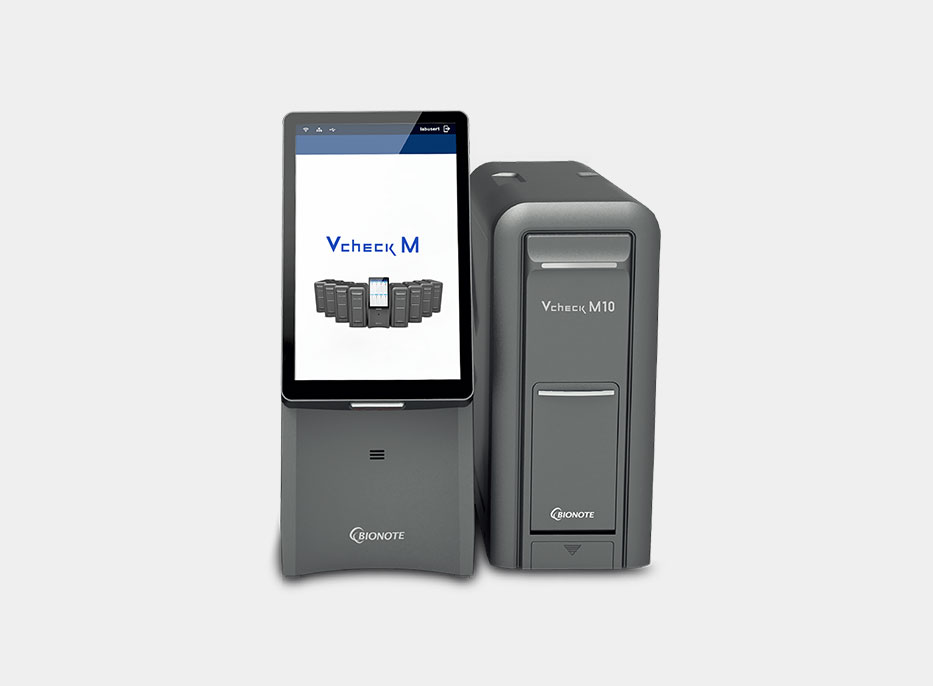

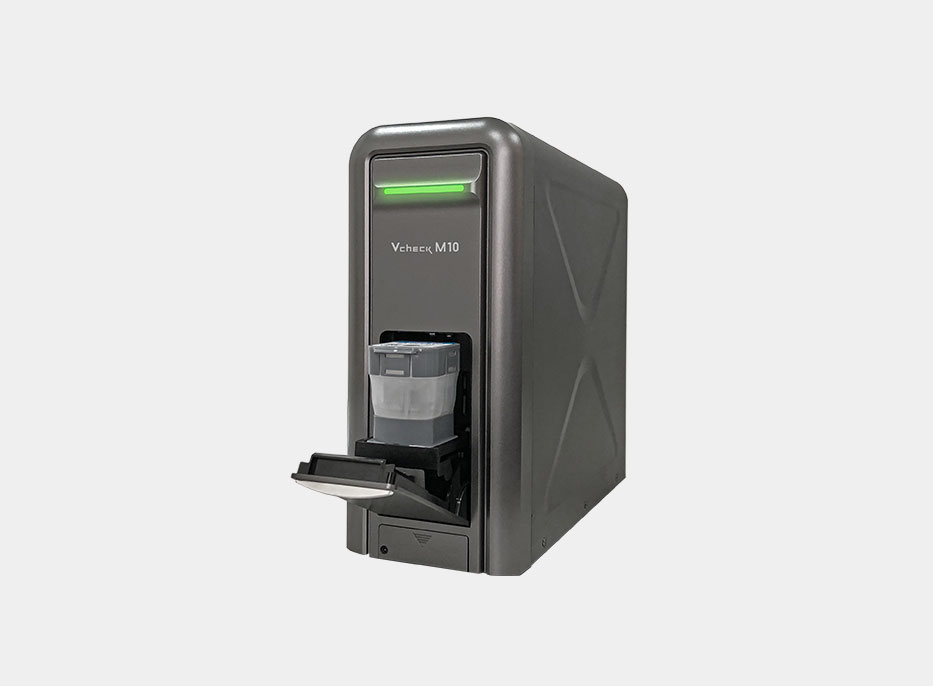

Vcheck M10

Vcheck M10 is a molecular diagnostic POC analyzer that enables immediate, on-site testing for the most common infectious diseases.

Product Features

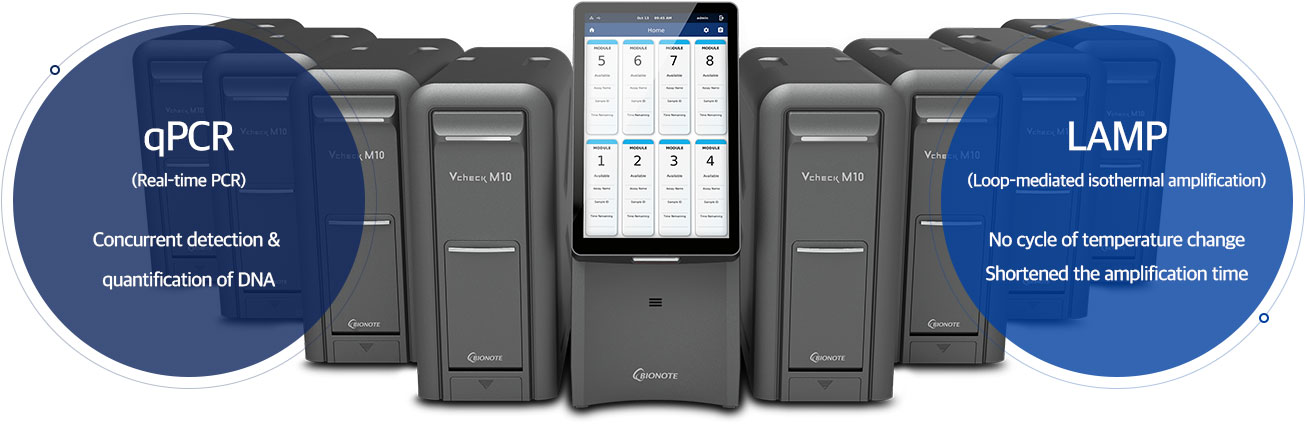

  • -qPCR + LAMP in One System
  • -Simple All-In-One System

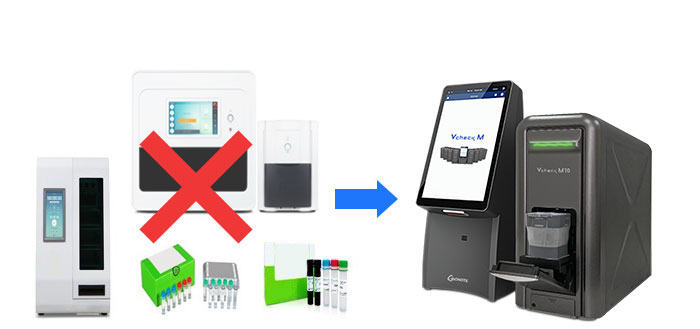

    Coventional PCR and nucleic acid extractor along with all the expensive lab. equipments
    and reagents are replaced with M10 and a single room temperature storable cartridge.

    -Multiplex test & expendable set-up

    Single cartridge that can test upto 12 different diseases.
    Upto eight M10 module can be connected, with it's small size optimizes workspace.

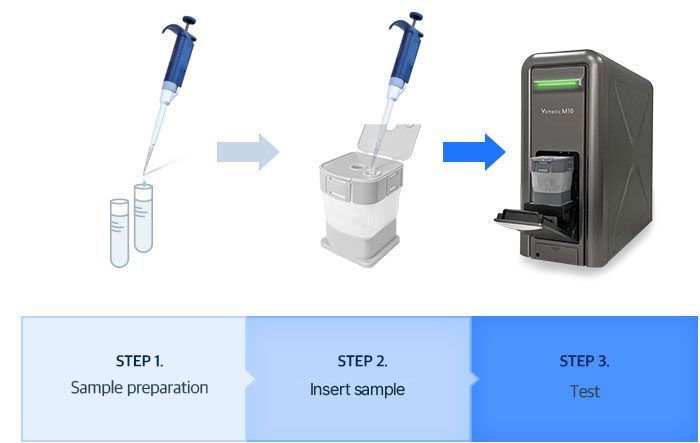

  • -User-friendly 3 Step test process

    Sample prep. ▶ Insert sample into cartridge ▶ Test
    with M10 User-friendly 3 Step which can be performed at any veterinary.

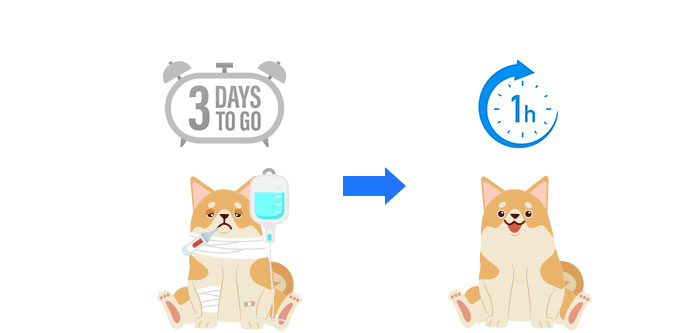

  • -Fast result, fast treatment

    In comparison to conventional usual lab. tests which take upto 3 working days.
    M10 only takes 1 hour for the test result at any veterinary.

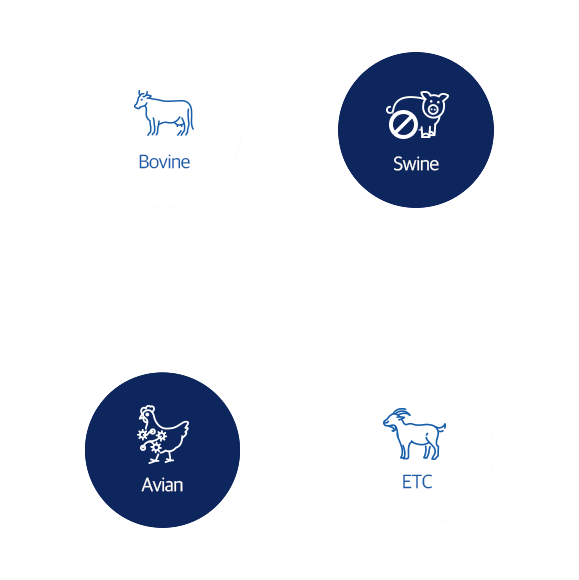

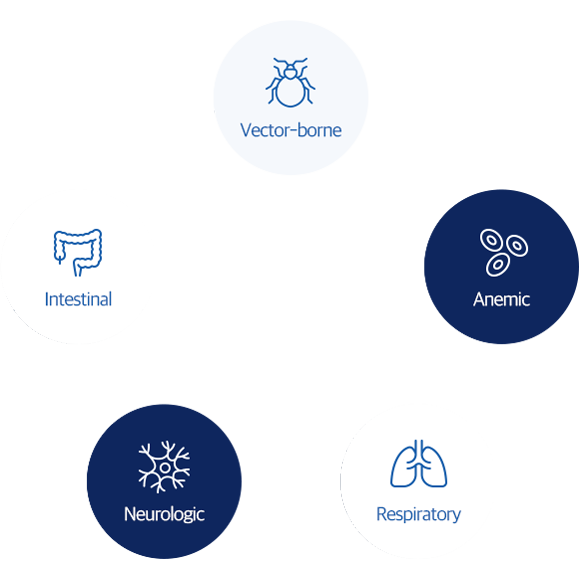

-Available Biomarkers
Specification
  • Power requirements : AC100~240V, 50/60Hz
  • Power requirements : Temperature -10-50°C (-4-122°F) / Humidity 0-93%
  • Test method : Real-time PCR, LAMP
  • Power consumption : Console : 84W Module : 84W
  • Memory : 5,000
  • Communication : Ethernet, USB, d-sub
  • Fluorescent channel : 3 channel (FMA, HEX, Cy5)
  • External interface : LAN, USB (x4)
  • LIH/HIS : HL7 PCD-01 profile support

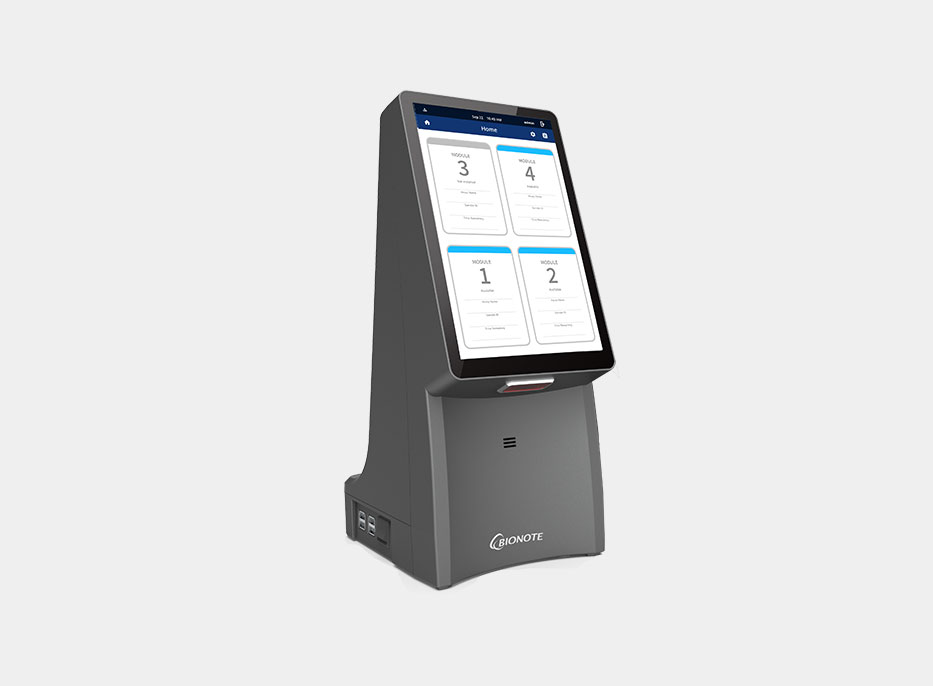

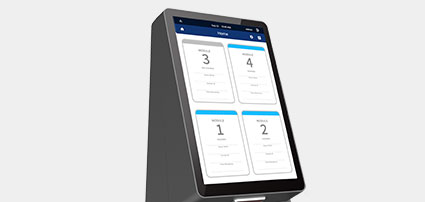

  • Screen : 10.1 inch touch screen
  • Size : Console : 17 x 23 x 39 cm Module : 14 x 33 x 32 cm
  • Weight : Console : 2 kg Module : 7 kg
-Order Information
  • Product No.

    VCM752EA

    VCM753EA

  • Product Name

    Vcheck M10 Console

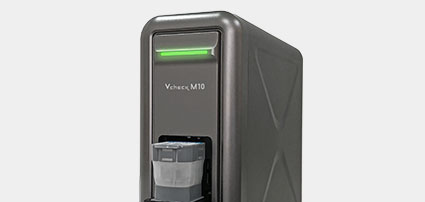

    Vcheck M10 Module

  • Operating Conditions

    10-40°C

    10-40°C

  • Package Unit

    1 EA

    1 EA
